KDU400V/500V/650V

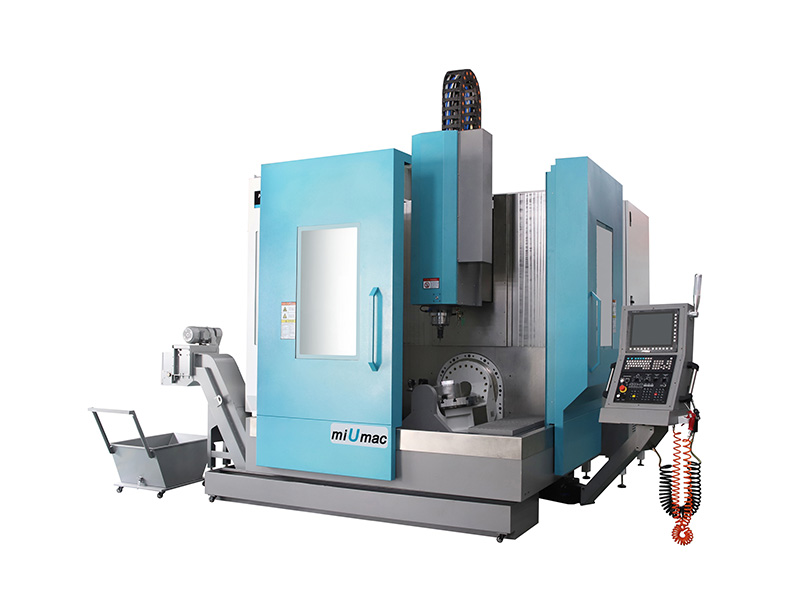

Centro de usinagem de cinco eixos

Placa com indexação biaxial de alta precisão controlada por CNC para realizar movimentos simultâneos de 5 eixos. Guias Lineares precisas dos eixos X/Y/Z que garante alta rigidez e precisão.

PARÂMETRO DE ESPECIFICAÇÃO

Item	Unit	KDU400V	KDU500V	KDU650V
Processing range
X/Y/Z axis travel	mm	800/360/400	820/520/500	820/520/500
B axis rotation angle	Deg.	±120	±120	±120
C axis rotation angle		360	360	360
Distance from spindle nose to worktable	mm	150-550	150-650	150-650
Max. processing Dia. & height of workpiece	mm	Φ360x400	Φ520×480	Φ520×480
Work table
Table size	mm	Φ400	Φ500	Φ650
Table load	Kg	200	300	300
T-slot (number x width x spacing)	mm	8×14×45	5×14×100	5×14×100
Feed system
X/Y/Z axis rapid feed	m/min	36/36/36	36/36/36	36/36/36
Max. speed of B/C axis	rpm	100/150	60/100	60/100
X/Y/Z axis motor torque	Nm	20/20/20	27/27/27	27/27/27
B axis rated/Max. torque	Nm	335/640	2000/3600	2000/3600
C-axis rated/Max. torque	Nm	106/203	600/1100	600/1100
Spindle system
Spindle drive mode		direct type	direct type	direct type
Spindle Max. speed	rpm	12000	12000	12000
Spindle rated power	kW	11	11	11
Spindle Max. torque	Nm	120	120	120
Tool shank specifications		BT40	BT40	BT40
Tool changing system
Tool magazine capacity	pcs	24	24	24
Tool change time (T-T)	Sec.	2	2	2
Accuracy
X/Y/Z repeat positioning accuracy	mm	≤0.006/0.004/0.004	≤0.006/0.004/0.004	≤0.006/0.004/0.004
X/Y/Z positioning accuracy	mm	≤0.008/0.006/0.006	≤0.008/0.006/0.006	≤0.008/0.006/0.006
B/C axis repeat positioning accuracy	Sec.	≤6	≤6	≤6
B/C axis positioning accuracy	Sec.	≤12	≤12	≤12
Others
CNC system		Siemens one	Siemens one	Siemens one
Machine weight	kg	8500	11000	11000

As especificações, descrições de texto, configurações, imagens, cores, etc. aqui fornecidas estão sujeitas a alteração sem aviso prévio e, portanto, sem qualquer obrigação.
